NV3500 Rear AC Vent Flow Balancers/Straighteners (Set of 4)
These help balance the flow of the notoriously poor rear passenger air conditioning ceiling vents in the Nissan NV3500 passenger van. In its stock configuration, the rearmost (4th row) passengers get very little cooling. Installing these in the 2nd and 3rd row vent diverters will direct much more of the total flow to the rear of the vehicle.
The nozzles straighten the flow (which otherwise comes out at an extreme angle) to allow the diverter fins to more effectively aim the airflow at the target. The scalloped nozzle outlet was necessary to eliminate an unpleasant hissing/whooshing noise in earlier prototypes.
INSTALLATION: Remove the vent diverters by grasping the outer bezel and twisting it a quarter turn or so counter-clockwise, at which point they should easily pull straight out. The first removal will be more difficult, as a small dab of hot glue is applied on the interior during manufacturing. Ensure you can remove your vents before ordering. Install these by aligning the retaining clips with the gaps in the diverter assembly and clicking them into place.

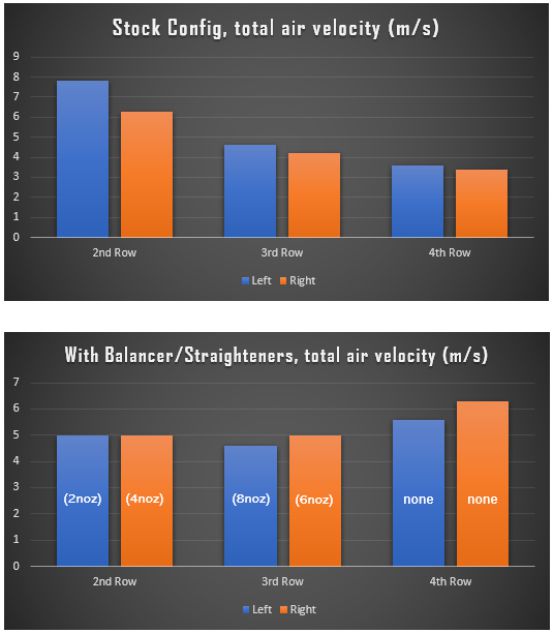

Manufacturing variability will cause different vans to have slightly different airflow characteristics, but the recommended configuration is:
2nd row: Left - 2 nozzle, Right - 4 nozzle
3rd row: Left - 8 nozzle, Right - 6 nozzle
4th row: none installed
Printed in ABS.
Solid models available free of charge (personal, non-commercial use, for people with a 3D printer) released under Creative Commons BY-NC-SA license. Download here. No warranty given or implied.
